Hoffmann 3 External Fixation System

Hoffmann^® 3
External Fixation System

This fracture frame is to provide stabilization of compound fractures and where soft tissue injury may preclude the use of other fracture treatments

Ready for all.
Yielding for nothing.

The Hoffmann 3 Modular External Fixation System components are external fixation frame components for use with the components of the Hoffmann II MRI and Hoffmann II Compact MRI External Fixation Systems, in conjunction with Apex Pins. It is intended to provide stabilization of compound and/or unstable fractures and where soft tissue precludes the use of other fracture treatments such as IM nailing or casting or other means of internal fixation.

Hoffmann 3 interactive model Select a point of interest to explore our product portfolio.

Product Specifications

Delta couplings

“Delta” design allows for 6 different pin/bar diameter connections through a single coupling

Green: 5mm, 8mm, 11mm
Grey: 4mm, 5mm, 6mm
Built-in, removable thumbwheels for provisional tightening
Multiplayer Delta Couplings allow for increased flexibility
Snap-fit technology designed for a fast ex-fix application
Prevent “pop-out” with two turns of the thumbwheel

Carbon fiber rods

11mm carbon fiber rods
100mm - 650mm in length

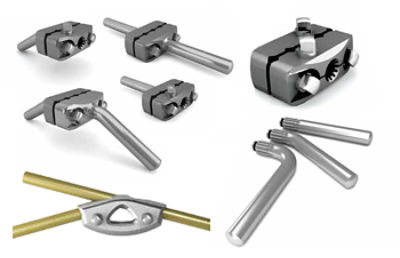

Pin clamps
and rod couplers

5-hole and 10-hole pin clamps with customizeble, fixed posts
Modular or pre-welded versions available
Straight, 30, and 90 posts
30 fixed angle connection for 11mm rods
Pelvic and knee bridging applications
Asymmetric capability may aid in anatomic positioning

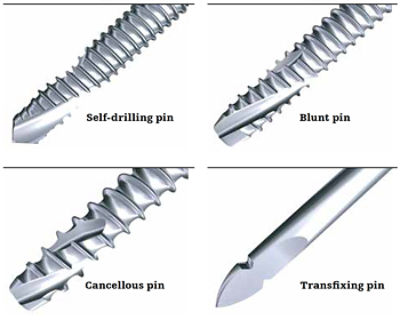

Apex pin portfolio

Self-drilling / self-tapping, blunt, cancellous and transfixing apex pins
Stainless steel & titanium options, HA coating available
Hybrid pins allow use of 3 & 4mm threads with the 5mm side of delta couplings
Universal pin chuck allows stab-&-grab of all Apex pins

Sterile fields kit

Field kits with pre-sterilized components and instruments needed for multiple indications
Available for civilian use
Bridging and emergency options available

Hoffmann 3 resources Discover more about Hoffmann 3 by exploring our collection of unique clinical resources including surgical reduction technique, exposure, and product overview videos, brochures, whitepapers, and more.
