LIFEPAK CR2

Intuitive design for immediate confidence

Public access to automated external defibrillators (AEDs) helps ensure lifesaving technology is placed where it can do the most good. With a design influenced by user feedback, it’s no surprise the LIFEPAK CR2 is rated highest in overall user confidence by AED users.¹

The LIFEPAK CR2 defibrillator connects all teams involved in the response – reducing delays in treatment and supporting improved care across the lifesaving system.

PRODUCT HIGHLIGHTS

LIFEPAK CR2 defibrillator

Advanced technology including cprINSIGHT analysis technology, Wi-Fi connectivity and continuous self-monitoring enables AEDs and rescuers to be prepared to deliver swift, lifesaving treatment.

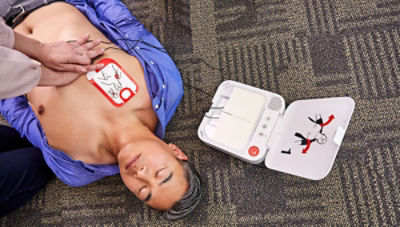

Reduced pauses in chest compressions

Continuous CPR improves blood circulation and increases chances of survival. The LIFEPAK CR2 is the only AED currently available that allows chest compressions during electrocardiogram (ECG) rhythm analysis, reducing pauses between CPR and defibrillation.

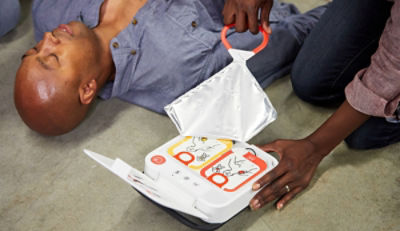

Designed for user confidence

Simple graphics, audible instructions and automated features help users remain focused during a sudden cardiac arrest emergency. Dual language capabilities and ClearVoice technology help users understand and hear voice prompts.

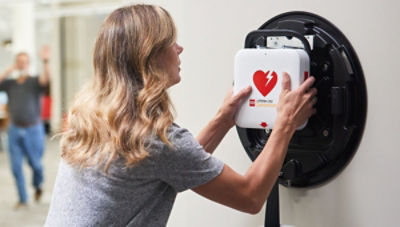

Connected to responders

Wi-Fi connectivity gives emergency responders a complete picture of the sudden cardiac arrest event. Before they arrive, emergency responders are informed of event details including shocks given and patient ECG to continue with appropriate lifesaving actions.

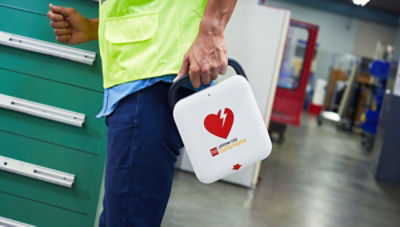

LIFEPAK TOUGH

Featuring an IP55 rating against dust and water, the LIFEPAK CR2 works in challenging conditions.

FAQs

What is cprINSIGHT analysis technology?

cprINSIGHT analysis technology reduces CPR pauses and increases chest compression fraction (CCF) during the treatment of sudden cardiac arrest victims. The technology is safe to use on adults and children.

How much does the LIFEPAK CR2 AED weigh?

The LIFEPAK CR2 weighs 4.5 pounds.

What are the dimensions of the LIFEPAK CR2?

The dimensions of the LIFEPAK CR2 are 3.8 inches x 8.9 inches x 10.8 inches

What are the default energies of the LIFEPAK CR2 for adults and children?

Adults: 200J, 300J, 360J Pediatric: 50J, 75J, 90J

What is the Child Mode button?

The child mode button on the LIFEPAK CR2 allows the operator to switch to child mode for reduced energy and CPR guidance appropriate for children.

What is ClearVoice technology?

ClearVoice technology detects background noise and adjusts audio and voice prompts to ensure they can be heard clearly in noisy environments.

What accessories are included with the LIFEPAK CR2?

The LIFEPAK CR2 comes with a lithium battery and QUIK-STEP electrode pads that can be used on both adult and pediatric patients.

What is the battery life of the included lithium battery?

The standby life of the included battery is four years if installed on a device that is not used. The battery will provide 166 200 joule shocks (with one minute of CPR between shocks) or 103 360 joule shocks (with one minute of CPR between shocks) or 800 minutes of operating time.
