Surpass Evolve®
Flow Diverter
_____________________________________
Flow diversion simplified
Introducing Stryker's next generation flow diverter system combining years of flow diversion research, extensive physician feedback and Stryker engineering prowess, to develop a highly optimized 64-wire flow diverter.
Lower push force
The flexibility profile of the solid core wire is designed to match anatomy and partner with Excelsior XT-27 Microcatheter Standard Straight, for lower friction forces, even in highly tortuous vessels.
Testing performed by Stryker. Data on file at Stryker.Bench test results may not necessarily be indicative of clinical performance
Reliable opening
Engineered to maintain the radial pressure of Surpass Streamline Flow Diverter for reliable implant opening, distal to proximal.
Testing performed by Stryker. Data on file at Stryker.Bench test results may not necessarily be indicative of clinical performance
64-wire mesh density
Surpass Evolve is the only 64-wire flow diverter that maintains consistent mesh density across diverse neurovascular anatomy.
Pipeline
4.5x25 in 4.25mm tube
11-14 pores/mm² area 75-80% porosity
Surpass Evolve Flow Diverter
4.5x25 in 4.25mm tube
17-20 pores/mm² area 74-78% porosity
Uniform wall apposition
A 64-wire implant was chosen to enhance implant opening, conformability and vessel wall apposition.
Image courtesy of Dr. Vitor Mendes Pereira, Toronto Western Hospital.
Image courtesy of Dr. Timo Krings, Toronto Western Hospital.

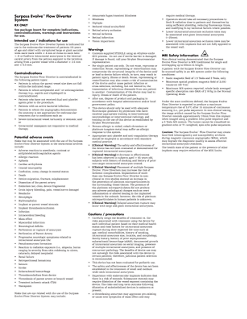

A.) Surpass Evolve
Flow Diverter

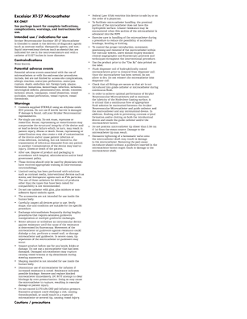

B.) Excelsior XT-27
Microcatheter

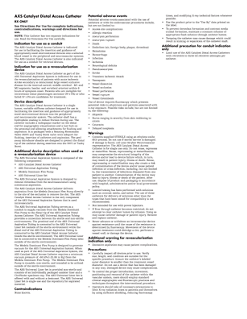

C.) AXS Catalyst 5
Distal Access Catheter

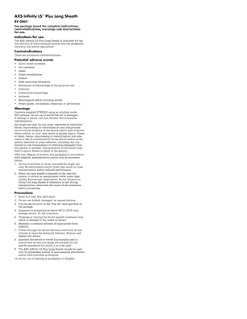

D.) AXS Infinity LS and Plus
Long Sheath
