Salvation® 3Di
Plating System
Designed to address the unique demands of advanced midfoot reconstruction

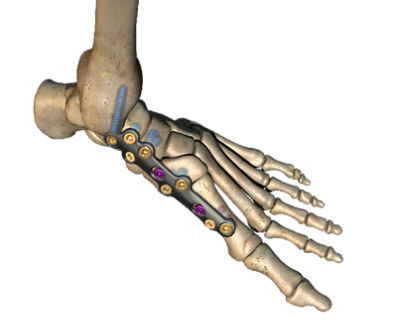

This system focuses on treating cases such as neuropathic deformity requiring arthrodesis of the medial column, with or without corrective osteotomies. Patients with poor quality, soft bone (e.g. Charcot), require a larger, more stable construct than traditional plates, as well as improved screw design for enhanced fixation. The Salvation 3Di Plating System is designed to specifically address these patients, while allowing for ease of soft tissue closure over the construct.
Designed with a focus on strength, versatility, and low-profile anatomic contours

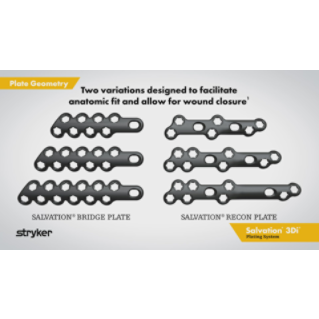

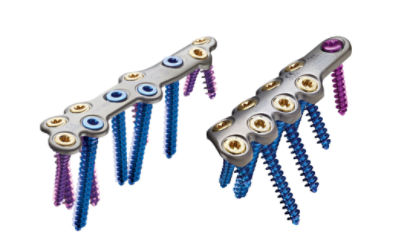

Two distinct plate options
Specific plate geometry is designed to enhance construct strength while still facilitating soft tissue closure; compression features in all plates.

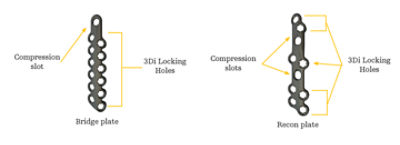

Bridge plate
Contoured to fit the specific anatomy of the medial column and provides the maximum number of screw hole options available in the system.
Recon plate
A low-profile option, while maintaining strength and anatomic fit.

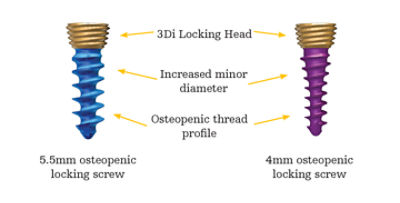

Osteopenic screws
All 3Di screw holes accept 4.0mm and 5.5mm non-locking and polyaxial locking screws.
Osteopenic thread profile
Designed for purchase in poor quality bone with increased minor diameter.
3Di technology
3Di locking holes are designed to accept 4.0 and 5.5mm locking & non-locking (low-profile) screws.
3Di locking head
Titanium nitride coated heads designed to allow off-axis locking up to 15o in any direction with the ability to relock screws up to three times.
