Salvation®
Fusion Bolts & Beams
Indicated for fracture fixation, osteotomies, reconstruction procedures, non-unions, and fusions of bones in the foot and ankle including the Metatarsals, Cuneiforms, Cuboid, Navicular, Calcaneus and Talus. Specific examples include Medial Column Fusion and Lateral Column Fusion resulting from neuropathic osteoarthropathy (Charcot).
Designed to address the demands of midfoot reconstruction
The system focuses on treating cases such as neuropathic deformity requiring arthrodesis of the medial and lateral columns, with or without corrective osteotomies.

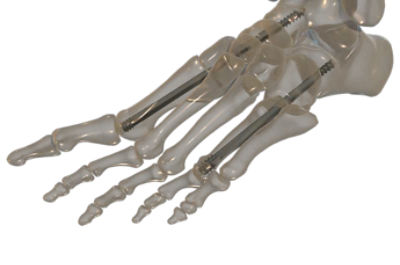

Implant options
Designed to address surgical preference
Multiple diameter offerings
Allow for beaming of greater and lesser metatarsals
Easy to use
System designed with easy to use instrumentation that assists in attaining reproducible results
The Salvation Fusion Bolts and Beams System should be used in the intramedullary canal in conjunction with external fixation, additional beams, plates, or contact casting until bony fusion has occurred.

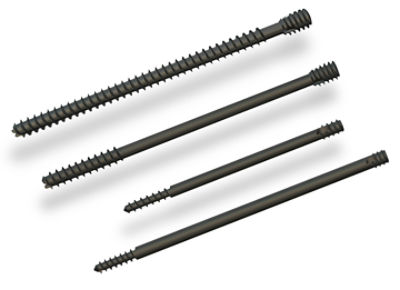

Fusion beams
7.0mm fusion beam partially threaded
- Lengths: 50mm to 160mm by 5mm increments
- Thread length, proximal end: 11mm
- Thread length, distal end: 34mm
7.0mm fusion beam fully threaded
- Lengths: 50mm to 160mm by 5mm increments
- Thread length, proximal end: 11mm
Fusion bolts
5.0 fusion bolt
- Lengths: 60mm to 160mm by 5mm increments
- Thread length, proximal end: 10mm
- Thread length, distal end: 22mm
6.5mm fusion bolt
- Lengths: 80mm to 160mm by 5mm increments
- Thread length, proximal end: 10mm
- Thread length, distal end: 24mm

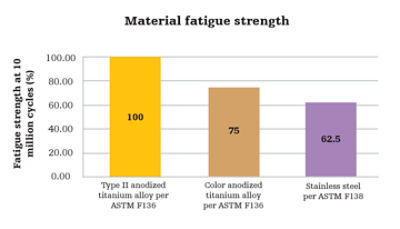

Designed for strength
Made with Type II Anodized Titanium Alloy with demonstrated higher fatigue strength than other materials1
Product resources
Discover a wealth of product resources at your fingertips. From informative videos to comprehensive brochures and handy downloads, access all the tools you need to make informed decisions and maximize the benefits of our innovative solutions.
Contact us
Send us a message to learn more about Salvation Fusion Bolts & Beams
Have questions or inquiries? We’re here to help! Fill out the contact form, and our dedicated team will get back to you promptly. Your feedback and inquiries are important to us, and we look forward to assisting you with any information or support you may need.
Are you a patient looking for more information or a physician in your area?
Click the button below for our patient website.
Thank you!
Thank you!
1. Stryker White Paper - A Comparative Analysis of the Fatigue Properties (012305A, 12-May-2015).
AP-017736
